Oczyszczarki strumieniowe używane
AGTOS nie tylko produkuje nowe oczyszczarki strumieniowe. W naszym asortymencie mamy również maszyny używane.
Poniżej znajdą Państwo listę maszyn używanych, które są w naszym posiadaniu, pod warunkiem, że w międzyczasie nie zostaną sprzedane. Maszyny te są w dobrym stanie i w zależności od życzeń klienta, są przez nas odnawiane, rozbudowywane, modernizowane i malowane.
Jeżeli są Państwo zainteresowani konkretną maszyną – prosimy o kontakt!
Wdzięczni jesteśmy również za wskazówki, co do możliwości odkupienia oczyszczarek strumieniowych pneumatycznych i z wirnikiem rzutowym, które są w Państwa posiadaniu albo też w posiadaniu osób trzecich. W taki przypadku prosimy o kontakt pod numerem telefonu +49-(0) 2572-96026-0 bądź drogą mailową e-mail.
Każdorazowo prosimy o podanie numeru z listy.
| Machine No. |
08-009 / 180466 |
| OEM |
DISA |
| Type |
Drum blasting machine |
| Name |
T7-138 |
| Turbines |
1 x AGTOS |
| Cartridge filter |
1 x DISA |
| Volume |
1400m³/hod |
| Age |
2006 |
| Weight workpiece |
10 kg |
| Volume of workpieces |
0,11 m³ |
| Weight workp. total |
200 kg |
| Machine No. |
180616 |
| OEM |
Rump |
| Type |
Diabolo blast machine |
| Name |
10-R-S-200 |
| Turbines |
2 x, 15 kW |
| Cartridge filter |
Torit Patronenfilter |
| Volume |
4.500 m³/h |
| Age |
1999 |
| Weight workpiece |
5-150 kg |
| Other details |
Operating voltage: 400 V /50 Hz
Workpiece outer diameter: max. 60-200 mm
Workpiece length: max. 500-4000 mm, can also be extended
Tool steel full lining |

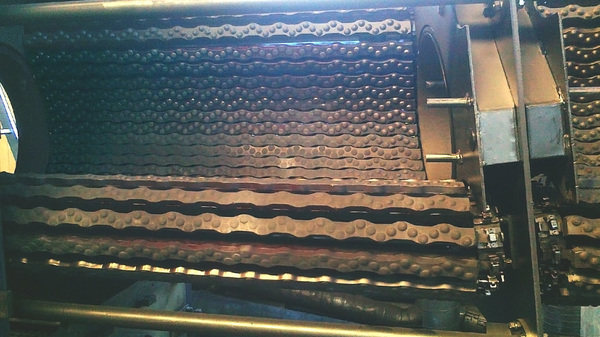

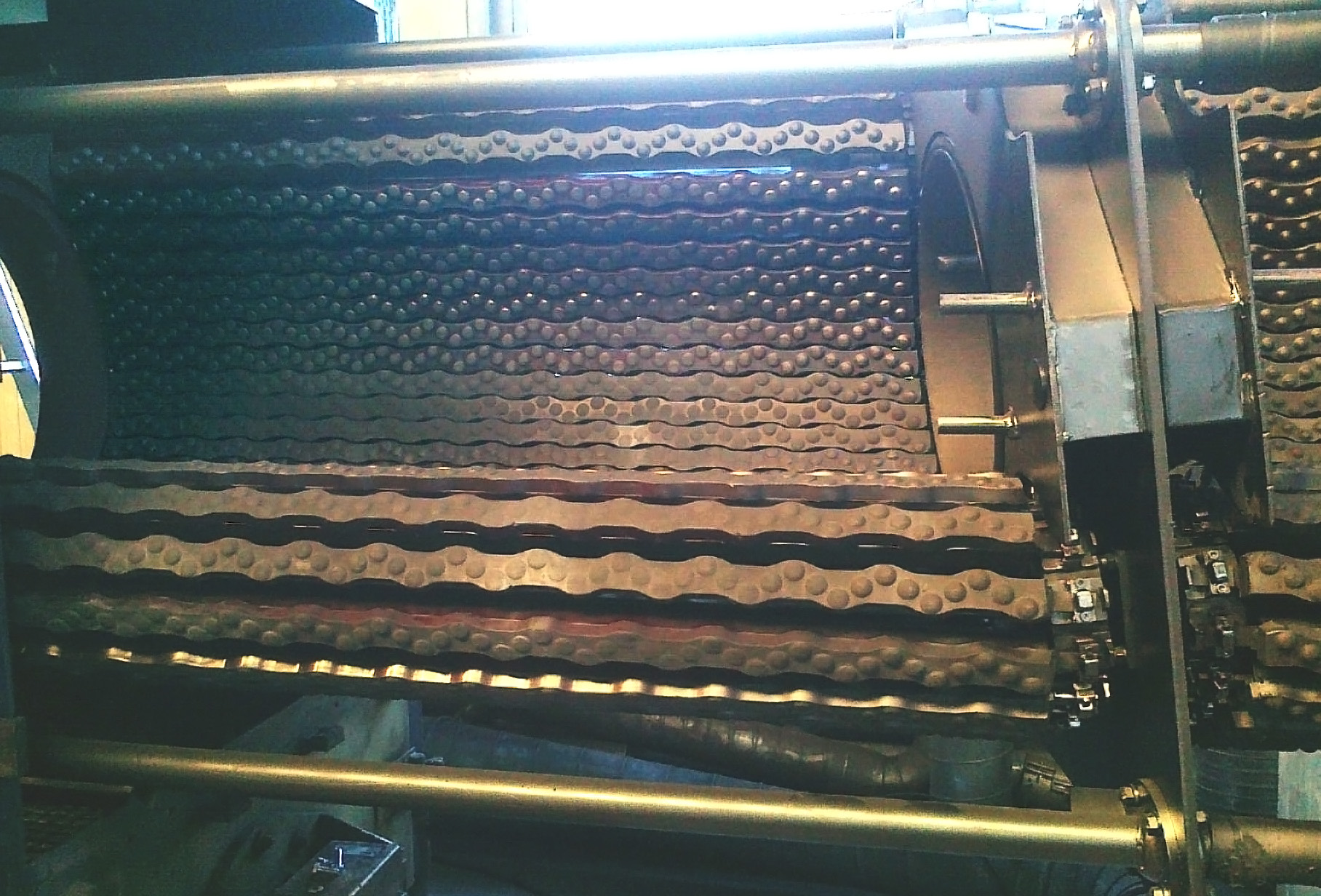

| Machine No. |
180712 |
| OEM |
Walther Trowal |
| Type |
Continuous belt blasting unit |
| Name |
THM 500-2-E |
| Turbines |
2 x, 11 kW |
| Cartridge filter |
optional |
| Age |
1999 |
| Other details |
Pass width x pass height: 500 mm x 500 mm
Installation without a foundation
We are happy to offer a suitable filter system. |
| Machine No. |
180732 |
| OEM |
Rump |
| Type |
Rubber belt tumble blast machine |
| Name |
16-1-1-G |
| Turbines |
1 x new AGTOS Turbine 7,5 kW |
| Cartridge filter |
Used pocket filter with pipeline |
| Age |
1991 |
| Weight workpiece |
15 kW |
| Volume of workpieces |
200 l |
| Weight workp. total |
200 kg |
| Other details |
Operating hours: 12.000
Drum diameter: 900 mm
Wide blasting space: 850 mm
Max. diagonal of work piece: 300 mm
Installation without foundation, including feeder |
| Machine No. |
180815 |
| OEM |
AGTOS |
| Type |
Continuous overhead rail shot blast machine |
| Name |
DHT 02-03-3.6-04-11 |
| Turbines |
4 x, 11 kW |
| Cartridge filter |
A suitable AGTOS cartridge filter system can be added |
| Age |
2015 |
| Other details |
Control system: Siemens SPS
Passage width x height: 200 mm x 300 mm
Blasting chamber:
Robust construction made of highly wear-resistant manganese steel. In the direct blasting area of the high-performance turbines, easily replaceable, 10 mm thick, wear plates made of manganese steel are also installed.
The ceiling slot is sealed with an easily removable rubber seal, a strip brush and a labyrinth made of highly wear-resistant manganese steel.
The locks are sealed by several rubber lamellae arranged one behind the other.
In addition, the hook area is sealed with brushes from below. |
| Machine No. |
180880 |
| OEM |
Schlick |
| Type |
Roller conveyor blast machine |
| Name |
RB 1500-500-5.2-04-11 |
| Turbines |
4 x, 11 kW |
| Cartridge filter |
included |
| Volume |
7.500 m³/h |
| Age |
1998 |
| Other details |
Operating hours: 12.556
Height of machine: 5.200 mm
Passage width x height: 1.500 mm x 500 mm
Entry and exit roller table each 4 m
Outlet side with funnel and screw.
Role division facility: 400 mm
Roller table: 800 mm |

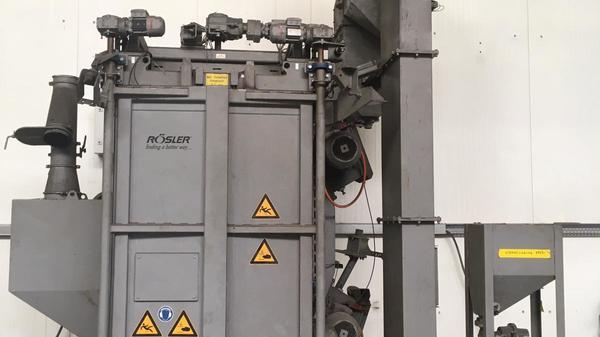

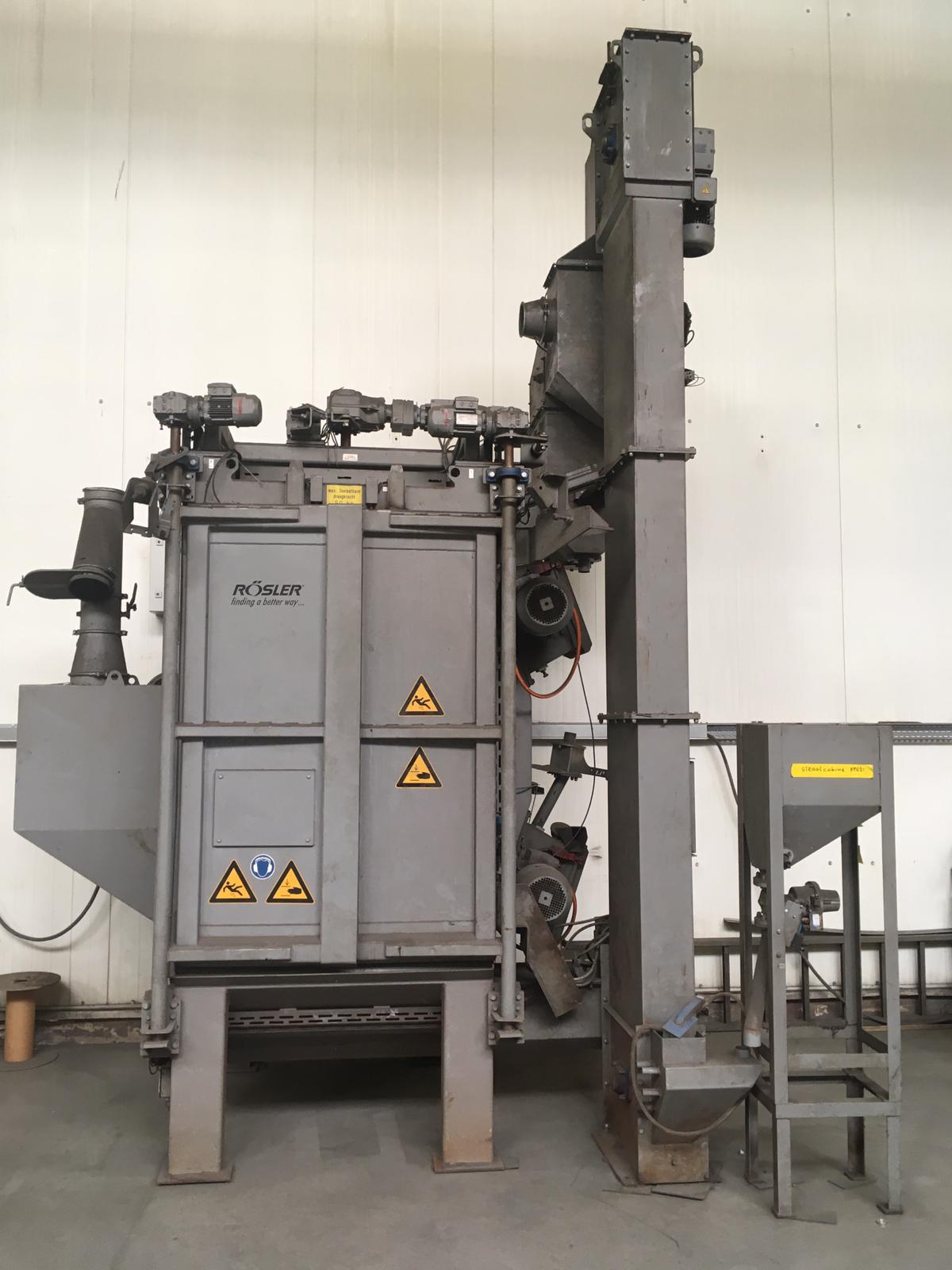

| Machine No. |
180919 |
| OEM |
Rössler |
| Type |
Hanger-type blast machine |
| Name |
RHBE 11/15-HD-SO |
| Turbines |
2 x,15 kW |
| Cartridge filter |
optional |
| Age |
2011 |
| Machine No. |
181041 |
| OEM |
Rump |
| Type |
Hanger-type blast machine |
| Name |
HT 13-E / I |
| Turbines |
2 x, 7,5 kW |
| Cartridge filter |
Without, optionally possible |
| Age |
2004 |
| Weight workpiece |
1.000 kg |
| Other details |
Operating voltage: 400 V, 50 Hz
Control voltage: 24 V.
Height of the machine: 5,700 mm
Max. Workpiece diameter: 1,200 mm
Max. Workpiece height: 1,800 mm
Conveyor with y-switch, 1000 kg max. weight per hook, total connected load 17 kW |
| Machine No. |
181072 |
| OEM |
Rösler |
| Type |
Rubber belt tumble blast machine |
| Name |
RMBC 1.1 |
| Turbines |
1 x, 7,5 kW |
| Cartridge filter |
Wet filter |
| Age |
2009 |
| Volume of workpieces |
max. 100 l |
| Weight workp. total |
300 kg |
| Other details |
Blasting chamber width: 700 mm
System height: 3,790 mm |
| Machine No. |
181045 |
| OEM |
AGTOS |
| Type |
Wire mesh conveyor shot blast machine |
| Name |
BS 10-05-3.6-04-11 |
| Turbines |
4x AGTOs high-performance turbine 3.6, each 11 kW with frequency converter |
| Age |
2015 |
| Other details |
Max. Abrasive throughput approx.: 198 kg / min per turbine
Operating voltage: 400 V, 50 Hz
Control voltage: 230V, 50 Hz, 24 V DC
Max. Workpiece width: 400 mm
Max. Workpiece height: 150 mm
Filter manufacturer: AGTOS
Filter type: optional |
